About Cimline

Designs and manufactures equipment to preserve roadways throughout the world. With a drive for performance and innovation, Cimline continues to offer cutting-edge technology.

Innovation In Preservation

Cimline innovative engineering teams are continually developing and delivering pavement preservation products that transform the pavement industry. Cimline works closely with our customers to gain invaluable in-sight to help develop products to meet and exceed their pavement needs.

Available for hire click here

View Specifications

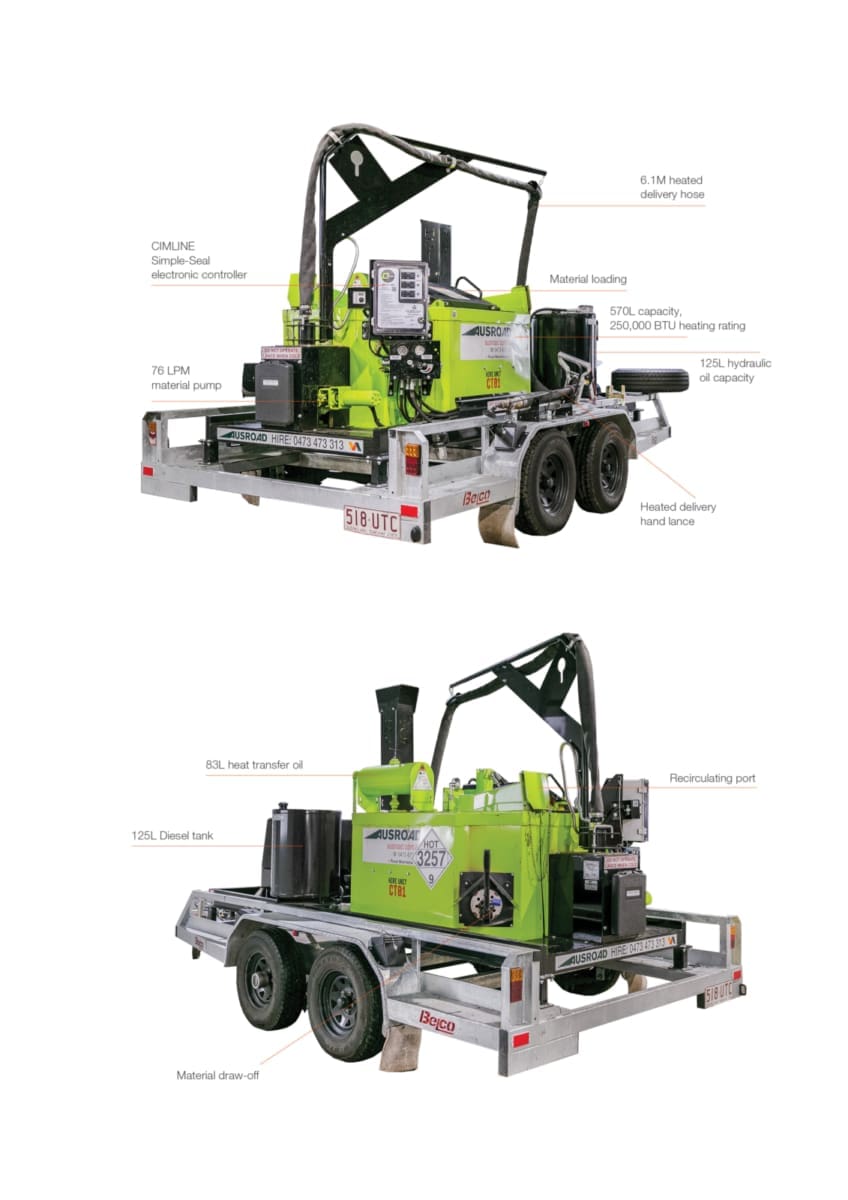

Ergonomic Simplicity | Community and Operation Friendly

The reputation of the MAGMA for simple, safe, sustainable operation lives on with the M-Series which marks a new chapter for Cimline™ with signature safety green paint.
Going green means more than a paint color change as the M-Series comes standard with lower emissions, lower fuel consumption and quieter operation for a better work environment. M-Series’s most popular features of the low-profile design, high production and easy to use operator features continue to make Cimline™ the leader in crack sealing.

Details – M-Series Models

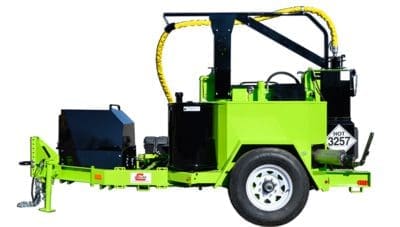

M1

The most popular asphalt crack sealer model. With 150-gallon capacity. Get the performance of the bigger model in a smaller package with single axle that can be towed with a ½ ton pick-up truck. See the general guidelines below to match your requirements:

• Your work consists of some parking lots but mostly road/municipal work.
• Your lane miles supported are less than 50 miles.
• Average daily production of 3-4 lane miles or less.

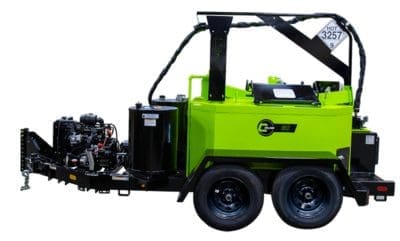

M2

Workhorse of the pavement maintenance. With 230-gallon capacity, dual loading doors and tandem axles, the M2 gets the job done. See the general guidelines below to match your requirements:

• Your work consists of some parking lots but mostly road/municipal work.
• Your lane miles supported are less than 100 miles.
• Average daily production of 5-7 lane miles or more.

M4

Largest capacity in industry. With 410-gallon capacity, dual loading doors and tandem axles, the M4 puts the product down! See the general guidelines below to match your requirements:

• Your work consists of heavy county/municipal work.
• Your lane miles supported are more than 100 miles.
• Average daily production of 8 lane miles or more.
• You require dual hose sealing high volume work.

K-Series™

Benefits:

Reduces fuel costs by up to 50% with unique S-type internal flue design
Greener, eco-friendly clean-out due to large onboard solvent and waste tanks
Saves time with optional folding spray bar that covers an 8’ swath in a single pass

Featuring:

Durable standard features such as a 7-gauge steel tank and torsion axles
Easier access with large maintenance hatch
Handle a range of jobs with 250- and 500-gallon capacity models
Adjustable application with a folding spray bar and nozzle adjustment valves

Details – K-Series Models

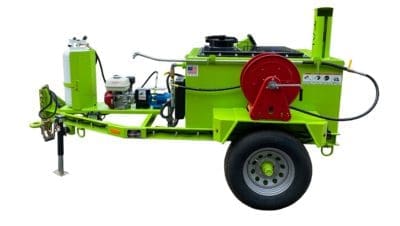

K2

Emulsion Capacity: 250
Engine: 5HP Gas Honda
Heating Method (overnight): Electric Probe(option)
Heating Method (operating): Single “S type” Flue w/burner
Heat Rating (BTU’s): 80,000
Material Pump: 15 gpm
GVWR (lbs): 3,700
GAWR (lbs): 4,000
Axles/ Suspension: 1 (torsion type)
Brake Type: Electric

Application Wand/ Hose: 72″ aluminum(50ft on Hose Reel)
Loading Ports: 10″ (vented and lockable)
Fuel Capacity: 2 gallons
Maintenance Hatch (l x w): 36″ x 22″
Trailer Construction: 5″ channel
Gravity Drain Valve: 2″
Temperature Gauge: 2″
Solvent Flush/ Waste Tank Capacity: 6 gallons
Dimensions (l x w x h): 130” x 76” x 67”
Shipping Weight : 1,600 lb.

K5

Emulsion Capacity: 500
Engine: 5HP Gas Honda
Heating Method (overnight): Electric Probe(option)
Heating Method (operating): Dual “U type” Flue w/burners
Heat Rating (BTU’s): 80,000 x 2
Material Pump: 15 gpm
GVWR (lbs): 6,500
GAWR (lbs): 4,000 x 2
Axles/ Suspension: 2 (torsion type)
Brake Type: Electric

Application Wand/ Hose: 72″ aluminum(50ft on Hose Reel)
Loading Ports: 10″ (vented and lockable)
Fuel Capacity: 2 gallons
Maintenance Hatch (l x w): 36″ x 22″
Trailer Construction: 5″ channel
Gravity Drain Valve: 2″
Temperature Gauge: 2″
Solvent Flush/ Waste Tank Capacity: 11 gallons
Dimensions (l x w x h): 130” x 79” x 67”
Shipping Weight : 2,300 lb.

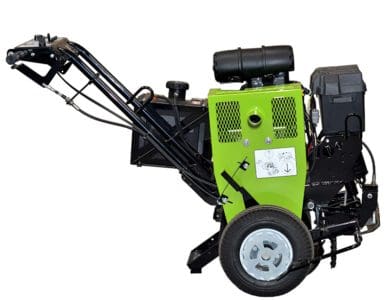

R3™ Asphalt Crack Router with Dust Control

View Specifications

Features and Benefits – R3

R3

Benefits:

Keeps operators safe with belly-bar hands-fee emergency shut down
Higher performance and lower maintenance Kohler® engine
Enhanced dust suppression system which is an important part of an OSHA silica dust control program

Featuring:

Quick Stop II anti-kickback system that stops all backward travel when handles are released
Cut-control option allows you to accurately maintain a consistent cut depth
Large tilt-up shroud allows for bit access
Dust suppression tank helps mitigate dust during cutting

Want to find out more or get a quote?

Read our case studies

Read our road maintenance case studies

Read our mining plant case studies
