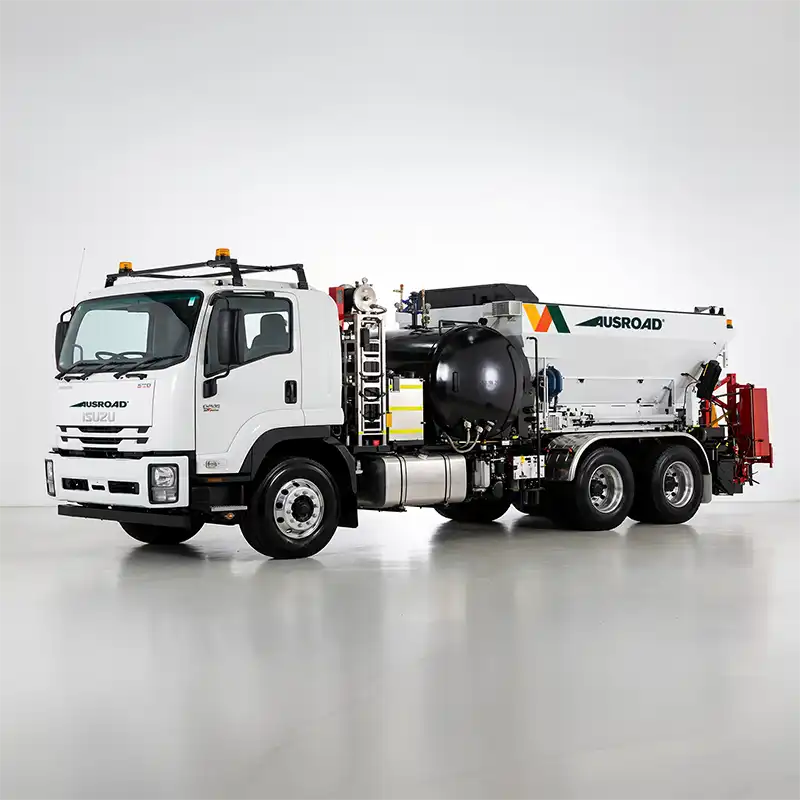

Synchronous Spray Seal Truck

One Truck, Full Road Maintenance Capability.

Designed for efficient, high-productivity road maintenance, Ausroad’s Synchronous Spray Seal Truck is a fully self-contained solution, carrying all product and signage systems required for road maintenance and chip-sealing applications. Capable of safe single-operator use, it features a rotary broom with dust suppression for sealing preparation, a 2.4 m side-shifting single-pass emulsion spray bar, and an aggregate chip spreading attachment. The spray bar includes eight independently controllable jets, delivering spray widths from 300 mm to 2.4 m, making it ideal for patches or pavement edge break repairs. A full-width adjustable screed bar assists with profile correction, while the intuitive Ausroad Nexus control system provides complete control of the entire operation.

Ready to get started? Click below to enquire about purchase, hire options, or project support today.

Request a Quote / Info

Download Road Maintenance Catalogue

Ausroad Spray Seal Truck No BG Retina

Tech Specs & Special features

Gallery

Carrier Requirements

Synchronous Spray Seal Truck Carrier Requirements

Item	Description
Chassis Configuration	6×4 single cab chassis
Gross Vehicle Mass (GVM)	26-tonne GVM
PTO Requirement	Hot-shift PTO required
Wheelbase	Approximately 4,900 mm to 5,500 mm (centre of steer axle to centre of rear axle group)

Standard Features

Synchronous Spray Seal Truck Standard Features

Item	Description
Aggregate Hopper	7m³ hopper with electrically driven retractable tarp and self-tracking conveyor discharge system
Hydraulic System	PTO-driven onboard hydraulic system powers all operational functions
Bitumen Emulsion Tank	3,000L tank with heat exchange system and filter
Water Tank	240L water tank
Kerosene Tank	45L kerosene tank
Product Delivery System	10m retractable hose reels for bitumen and water application
Spray Wand	Hand-held spray wand for manual bitumen emulsion application
Front Water Spray Bar	Assists with material application
Tool Storage	Passenger-side toolbox over rear axle group
Hydraulic Service Storage	Driver-side compartment housing hydraulic and greasing systems
Traffic Cone Holder	Rear-mounted traffic cone storage
Warning Beacons	Corner-mounted Narva 85246A beacons
Work Lighting	Side-mounted work lights
Safety Lighting	Micro-pulse flashers, reverse squawker and locker lights
Electrical Isolation	Lockable battery/starter isolation system
Camera Integration	OEM camera integration covering rear, hopper and side views
Jump Start System	350A Anderson jump-start connection (12V/24V)
Sign Storage	Full-width sign storage located behind cabin
Roof Signage	Arrow board/patrol sign mounted above cabin
Rear Arrow Board	Rear-mounted traffic arrow board
Road Broom	Rotary broom with dust suppression for surface preparation
Spray Bar & Aggregate Spreader	Side-shifting spray bar with integrated chip spreader for widths from 300mm to 2.4m
Adjustable Screed Bar	Corrects road profile irregularities and subsidence
Tow Hitch	Ringfeder tow hitch rated to 4,500kg
Control System	Ausroad Nexus in-cab control interface with remote support capability
Spare Wheel Carrier	Electrically actuated spare tyre lowering system
Toolbox Lighting	Automatic lighting when toolboxes are opened
Emergency Stops	E-stop controls positioned around vehicle body
Fire Safety	Fire extinguishers included
Access Safety	Safety-yellow grab handles and anti-slip step treads
Wheel Chocks	Included for operational safety
Documentation	Workshop manual, operator’s manual and spare parts manual included
Warranty	2-year warranty

Optional Extras

Synchronous Spray Seal Truck Optional Extras

Item	Description
Tank Heating	Overnight heating system for bitumen emulsion tank
Hydraulic Remote Outlet	Additional hydraulic remote outlet connection
GPS & Material Logging	GPS tracking and material logging with USB export capability
Load Cells	Independent load cells for hopper and emulsion tank
Signage Options	Choice of VMS board, patrol sign or arrow board configurations
Automatic Greasing	Automated greasing system for body and chassis
Heated Spray Tips	Heated spray tips for improved material application in cooler conditions
